SPEEDPLAY

ADVANCED BIKE PEDAL SYSTEM

AT ONE WITH YOUR RIDE

As the only dual-sided bike pedal platform, Wahoo SPEEDPLAY delivers best-in-class efficiency, engagement and comfort. Together these benefits provide a direct link between rider and bike, maximizing every stroke through bicycle fit and float tuned to individual pedaling dynamics.

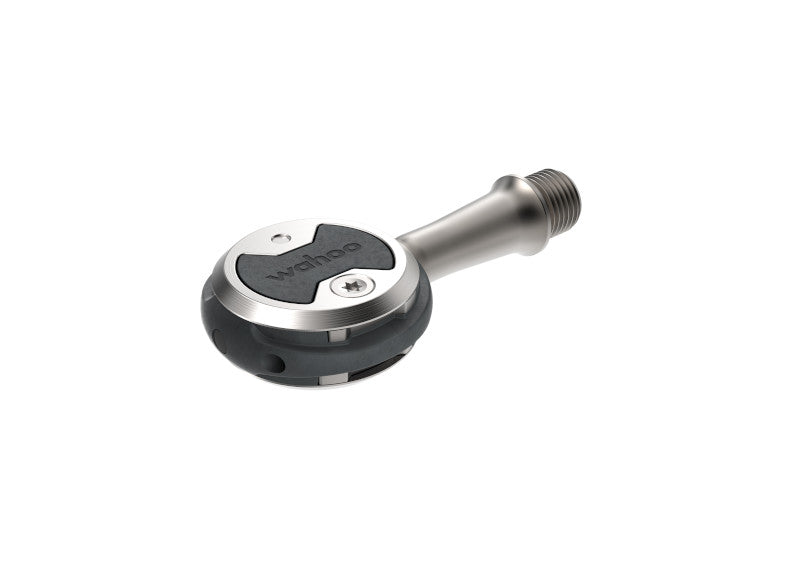

  • SPEEDPLAY Nano

    The featherweight, podium-ready SPEEDPLAY NANO deliver every cycling performance advantage on race-day.

    SPINDLE: Titanium

    WEIGHT: 168g

    Buy now

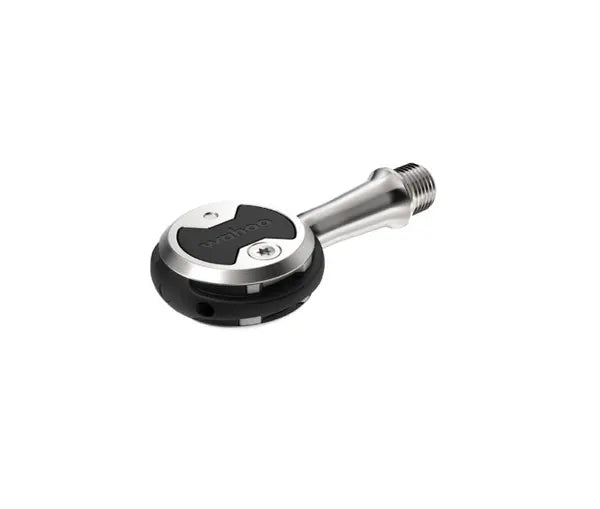

  • SPEEDPLAY Zero

    The breakthrough, race-ready SPEEDPLAY ZERO cycling pedals offer peak power transfer with exceptional durability.

    SPINDLE: Stainless Steel
    WEIGHT: 222g

    Buy now
  • Wahoo SPEEDPLAY: COMP Pedal System - Wahoo Nordic

    SPEEDPLAY Comp

    The versatile, ride-ready SPEEDPLAY COMP provides benefits to cyclists of every level.

    SPINDLE: Chromoly
    WEIGHT: 232g

    Buy now

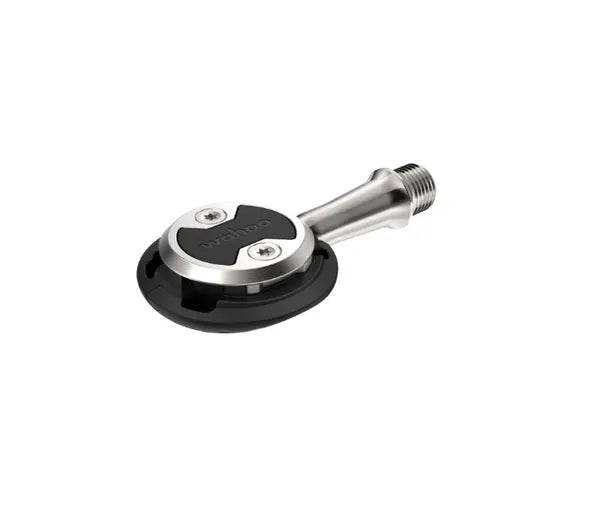

  • Wahoo SPEEDPLAY: AERO Pedal System - Wahoo Nordic

    SPEEDPLAY Aero

    The dimpled and streamlined SPEEDPLAY AERO clipless pedals defy wind, boosts speed and gets results.

    SPINDLE: Stainless Steel
    WEIGHT: 224g

    Buy now
1 4

PERFORMANCE BEYOND LIMITS

SPEEDPLAY is the only bicycle pedal system to provide independent 3-Axis Adjustability to optimize bicycle fit and enhance performance through better biomechanics.

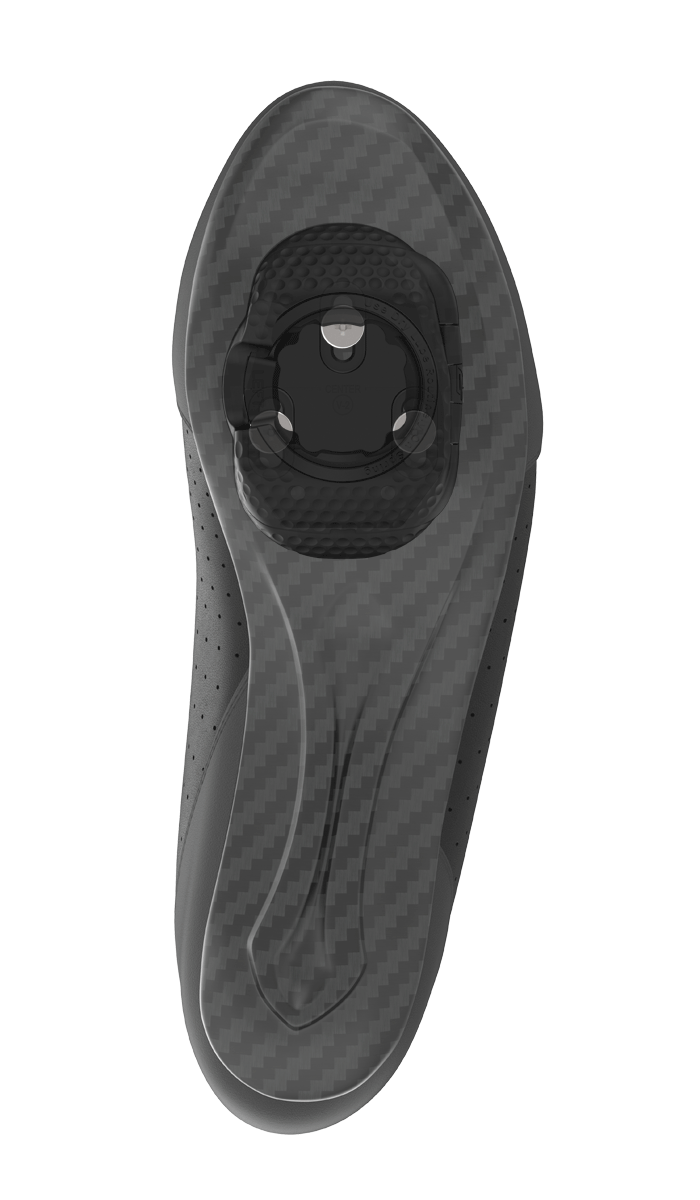

IDEAL FORE/AFT PLACEMENT

The cleat base plate provides 14mm of fore/aft adjustability, allowing you to accommodate your unique physiology.

PRECISE SIDE-TO-SIDE TUNING

Further dial in the perfect fit by fine-tuning the cleat spring housing plate’s 8mm of left/right adjustment.

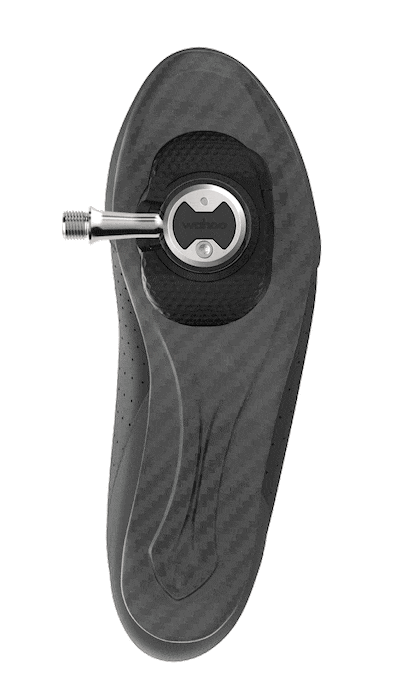

BEST-IN-CLASS BIKE FLOAT

With 0º to 15º of micro-adjustable float, the Speedplay road cycling pedals can be set from a fixed-position to anywhere within the 15-degree range.

AN ENGINEERED ADVANTAGE

Engineered and designed to account for everything, the SPEEDPLAY platform combines a low-profile bicycle pedal with an innovative cleat design to create a truly advanced pedal system, giving roadies and triathletes of all levels a distinct performance advantage.

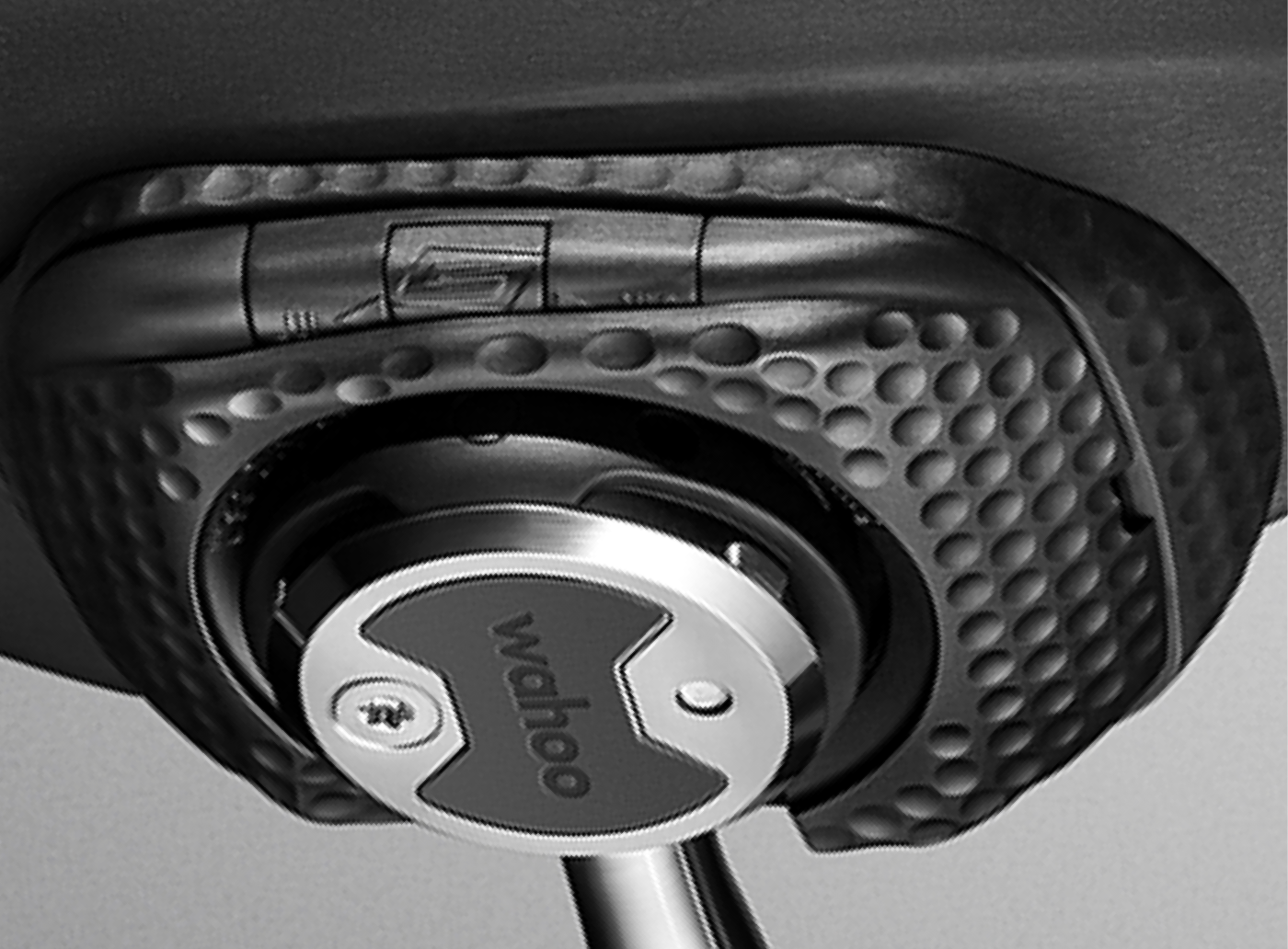

EVERY EFFORT MATTERS

SPEEDPLAY transfers power more efficiently than the competition by removing material between the foot and the spindle to reduce system stack height and reward every effort, big or small.

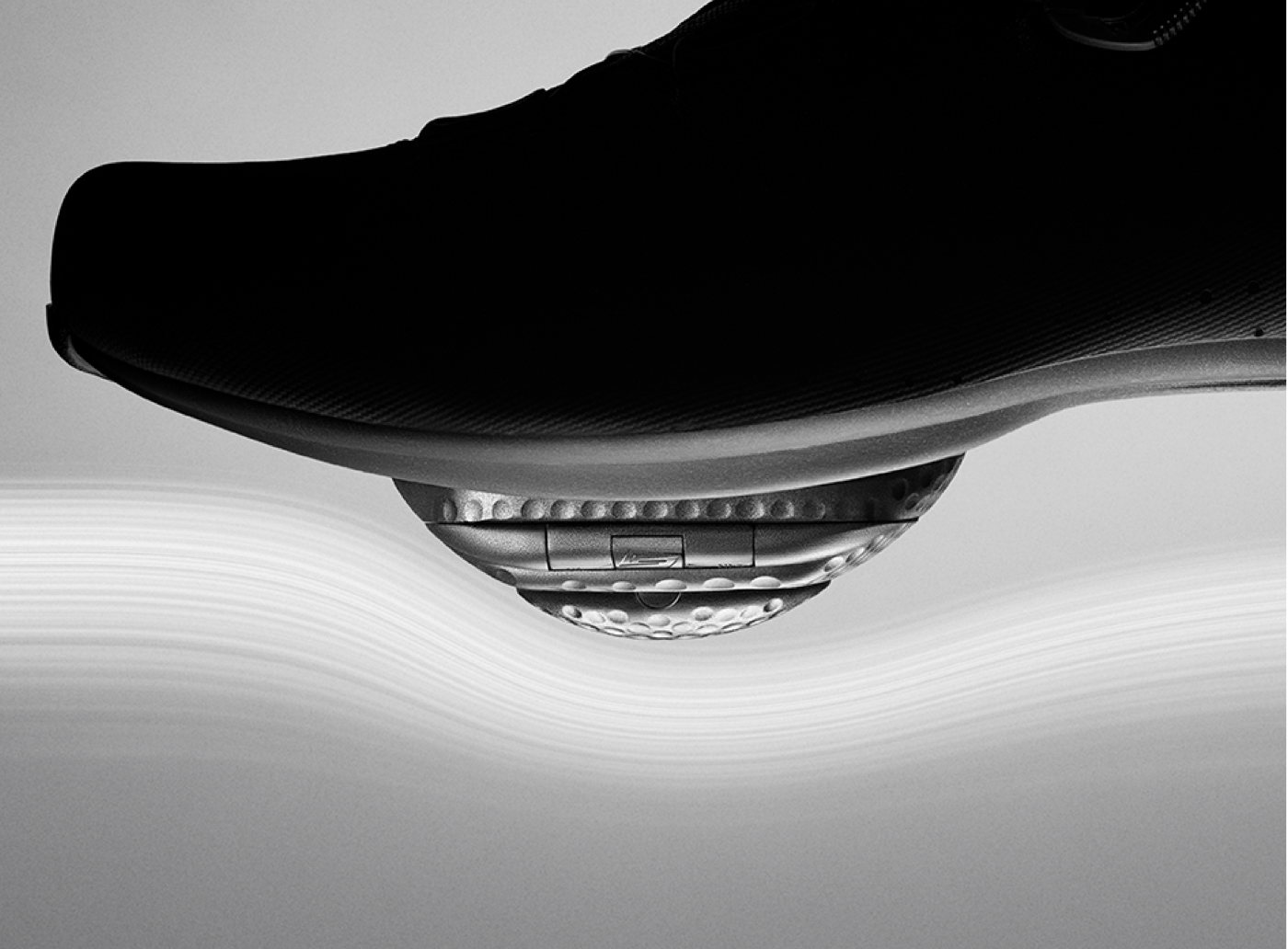

STREAMLINED FOR SPEED

By integrating a cleat with a lower pedal profile, SPEEDPLAY’s aerodynamic system platform decreases drag delivering faster ride speeds without increases in power output.

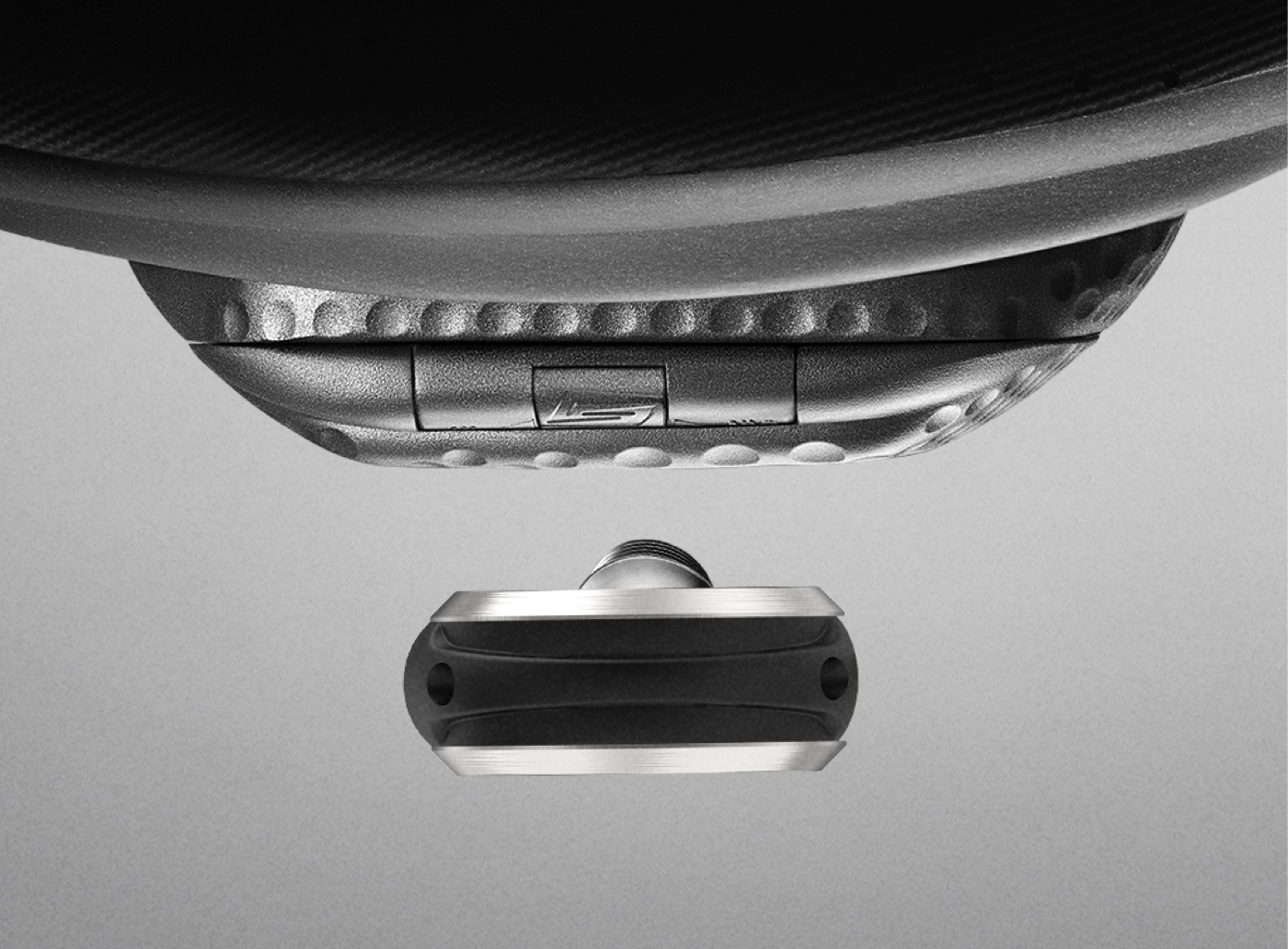

UNRIVALED CONFIDENCE

SPEEDPLAY advanced pedal system is the world’s only dual-sided* road pedal, simplifying engagement and creating a secure and stable platform.

*does not apply to AERO

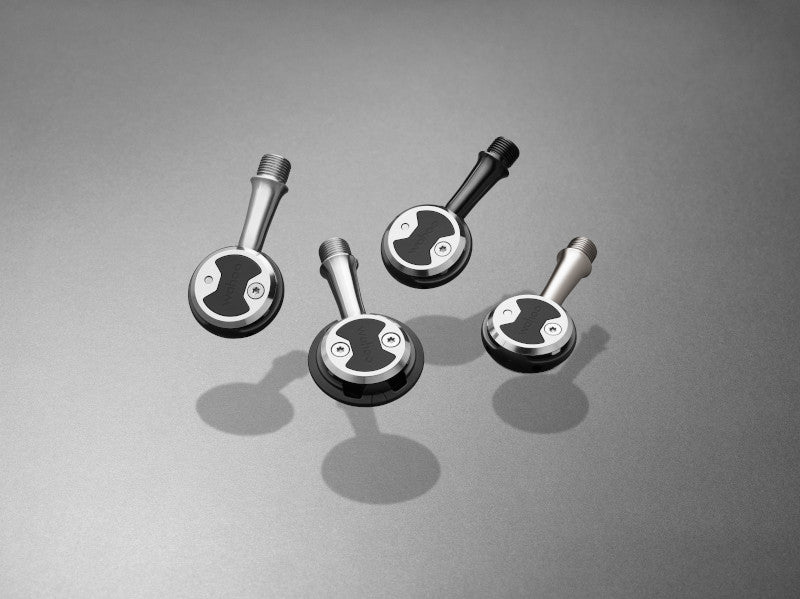

WHICH PEDALS ARE RIGHT FOR YOU?

PEDAL SPECIFICATION

SPEEDPLAY Nano SPEEDPLAY Zero SPEEDPLAY Comp SPEEDPLAY Aero
Unit Dimensions

9,9cm x 5,08cm x 5,08cm

9,9cm x 5,08cm x 5,08cm

9,9cm x 5,08cm x 5,08cm

9,9cm x 5,08cm x 5,08cm
Weight

168g per pair

222g per pair

232g per pair

224g per pair
Stack Height

11.5mm (3 hole) 8.5mm (4 hole)

11.5mm (3 hole) 8.4mm (4 hole)

11.5mm (3 hole) 8.4mm (4 hole)

11.5mm (3 hole) 8.5mm (4 hole)
Body Material

Carbon Composite

Grivory GV-6H

Grivory GV-6H

Grivory GV-6H
Spindle Material

Titanium

Stainless Steel

Chromoly

Stainless Steel
Q Factor

53mm

53mm, 56mm, 59mm, 65mm

53mm

53mm
Bearing Type

Triple Sealed Cartridge & Needle Bearings

Triple Sealed Cartridge & Needle Bearings

Triple Sealed Cartridge & Needle Bearings

Triple Sealed Cartridge & Needle Bearings
Cornering Clearance

39°

39°

39°

37°
Max Rider Weight

180lbs / 82kg

No restriction

No restriction

No restriction

CLEAT INTEGRATIONS

SPEEDPLAY Nano SPEEDPLAY Zero SPEEDPLAY Comp SPEEDPLAY Aero
Cleats Included

Standard Tension(Also compatible with Easy Tension, available to purchase separately)

Standard Tension(Also compatible with Easy Tension, available to purchase separately)

Easy Tension(Also compatible with Standard Tension, available to purchase separately)

Standard Tension(Also compatible with Easy Tension, available to purchase separately)
Release Angle

Micro Adjustable from 0° to 7.5°

Micro Adjustable from 0° to 7.5°

Micro Adjustable from 0° to 7.5°

Micro Adjustable from 0° to 7.5°
Pedal Float

Adjustable from 0° to 15°

Adjustable from 0° to 15°

Adjustable from 0° to 15°

Adjustable from 0° to 15°
Cleat Fore - Aft Adjustability

Up to 13mm

Up to 13mm

Up to 13mm

Up to 13mm
Cleat Left - Right Adjustability

Up to 6mm

Up to 6mm

Up to 6mm

Up to 6mm
Walkable Cleat

Yes (adaptor included)

Yes (adaptor included)

Yes (adaptor included)

Yes (adaptor included)

  • STANDARD TENSION CLEAT

    The Standard Tension Bike Cleat is dimpled and comes with an integrated cleat surround for an increased aero advantage. It's a race-level cleat built to handle the demands of the most powerful riders.

    Buy

  • EASY TENSION CLEAT

    The Easy Tension Bike Cleat has a light-action spring for easier pedal engagement, offering a stable and secure platform for all-day riding comfort.

    Buy

  • WALKABLE CLEAT COVER KIT

    Speedplay Walkable® Bike Cleats are the first truly walkable road cleats. The integrated, rubberized covers stay on the cleats while you are riding. When walking, the covers improve traction and protect the cleats from wear.

    Buy
